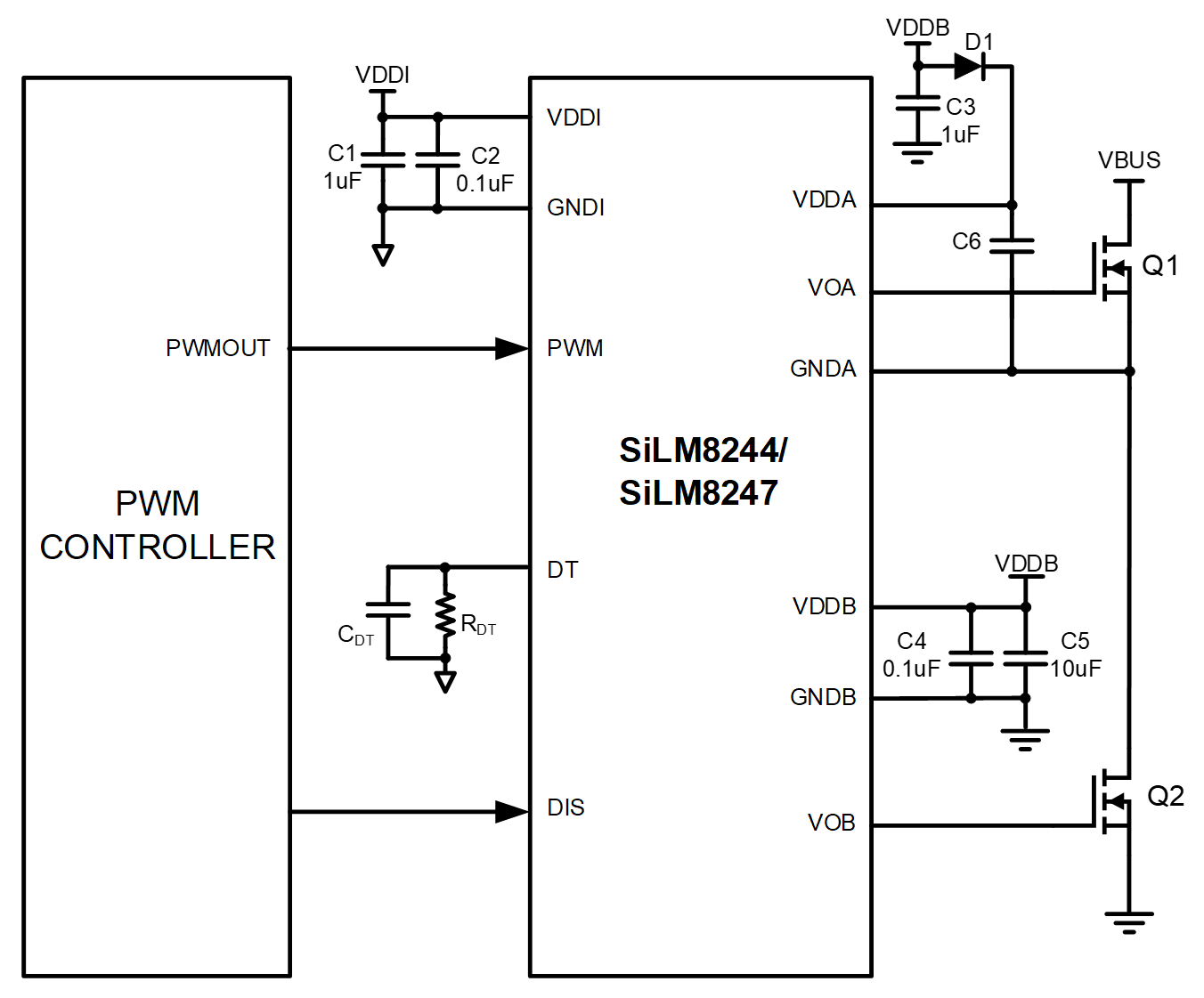

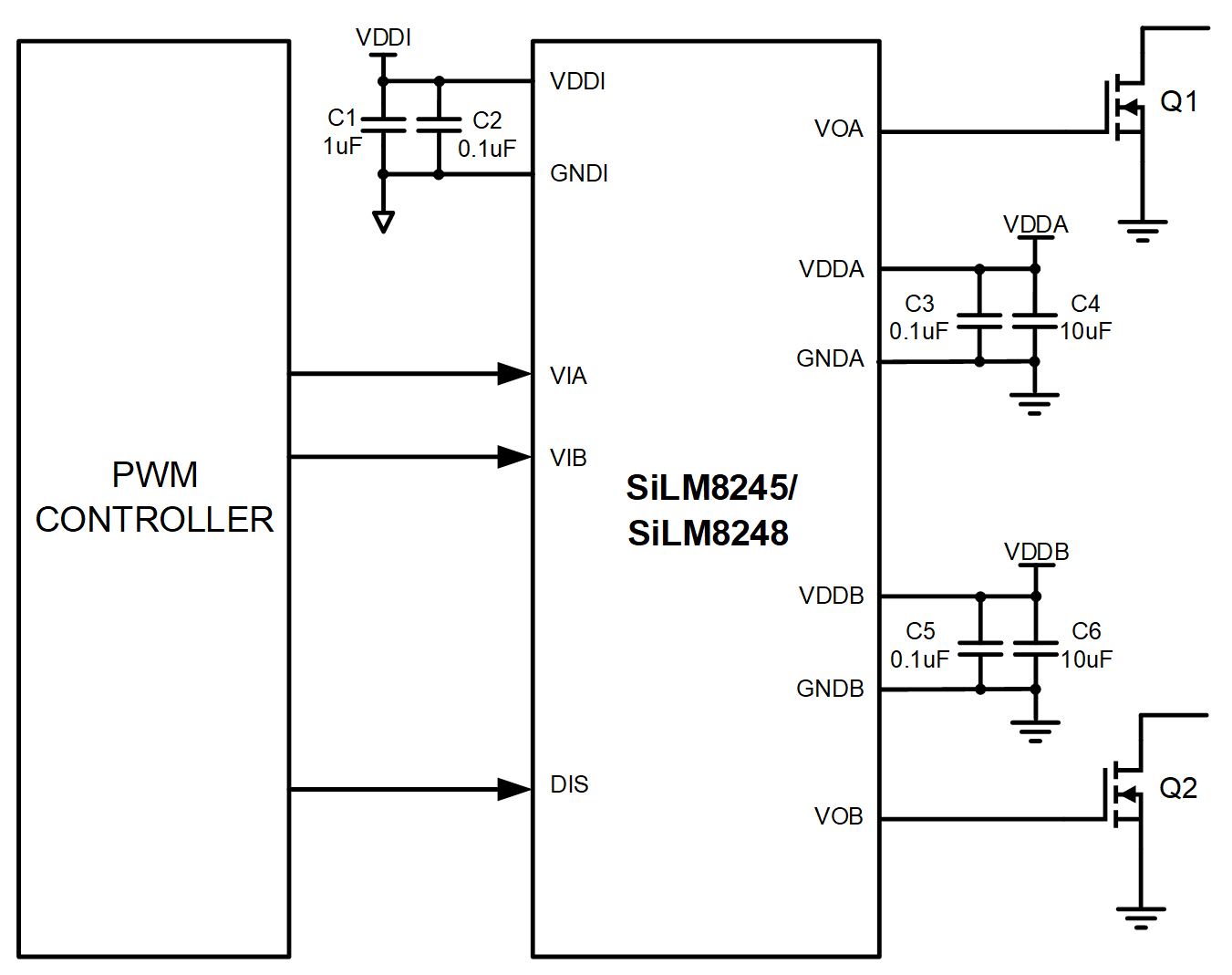

應用案例
| Part Number | Power Switch | IOH/IOL (A) | Output VCC/VDD (V) | Input VCC (V) | Prop. Delay（ns） | Input Config | Program Deadtime | Overlap Protection | CMTI (kV/μs) Min. | VISO(Vrms) | Operating Temp （℃） | Package Group | Packing/QTY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SiLM8243BBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8243ABCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8243GBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8243DBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8244BBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8244ABCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8244GBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8244DBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8245BBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8245ABCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8245GBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8245DBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8243ABCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8243GBCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8244ABCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8244GBCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8245ABCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8245GBCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8243ABCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8243GBCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8244ABCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8244GBCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8245ABCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8245GBCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8245DBCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8243BBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8243ABCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8243GBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8243DBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8244BBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8244ABCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8244GBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8244DBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8245BBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8245ABCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8245GBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8245DBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8243ABCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8243GBCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8244ABCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8244GBCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8245ABCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8245GBCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8243ABCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8243GBCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8244ABCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8244GBCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8245ABCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8245GBCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8246GAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 45 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8246AAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 45 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8246BAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9.1-33 | 3-18 | 45 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8246DAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 45 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8247GAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 45 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8247AAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 45 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8247BAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9.1-33 | 3-18 | 45 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8247DAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 45 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8248GAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 45 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8248AAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 45 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8248BAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9.1-33 | 3-18 | 45 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8248DAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 45 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
