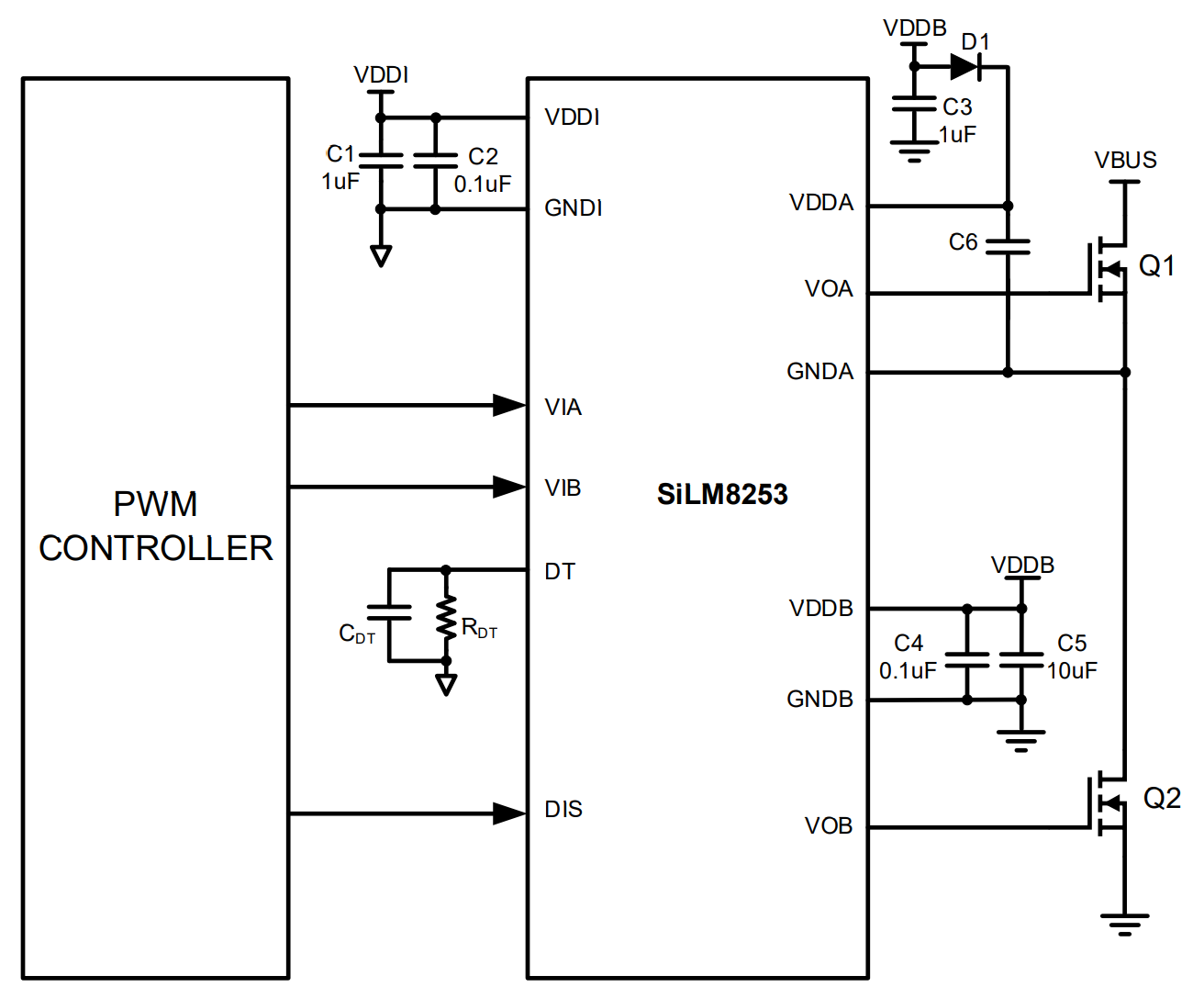

應用案例
| Part Number | Power Switch | IOH/IOL (A) | Output VCC/VDD (V) | Input VCC (V) | Prop. Delay（ns） | Input Config | Program Deadtime | Overlap Protection | CMTI (kV/μs) Min. | VISO(Vrms) | Operating Temp （℃） | Package Group | Packing/QTY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SiLM8253BDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8253DDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8254BDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8254DDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8255BDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8255DDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8253BDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8253DDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8254BDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8254DDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8255BDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8255DDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 |
| SiLM8253BBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8253DBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8254BBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8254DBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8255BBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8255DBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8253BDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8253DDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8254BDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8254DDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8255BDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8255DDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 |
| SiLM8253BBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8253DBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8254BBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8254DBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8255BBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
| SiLM8255DBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 |
