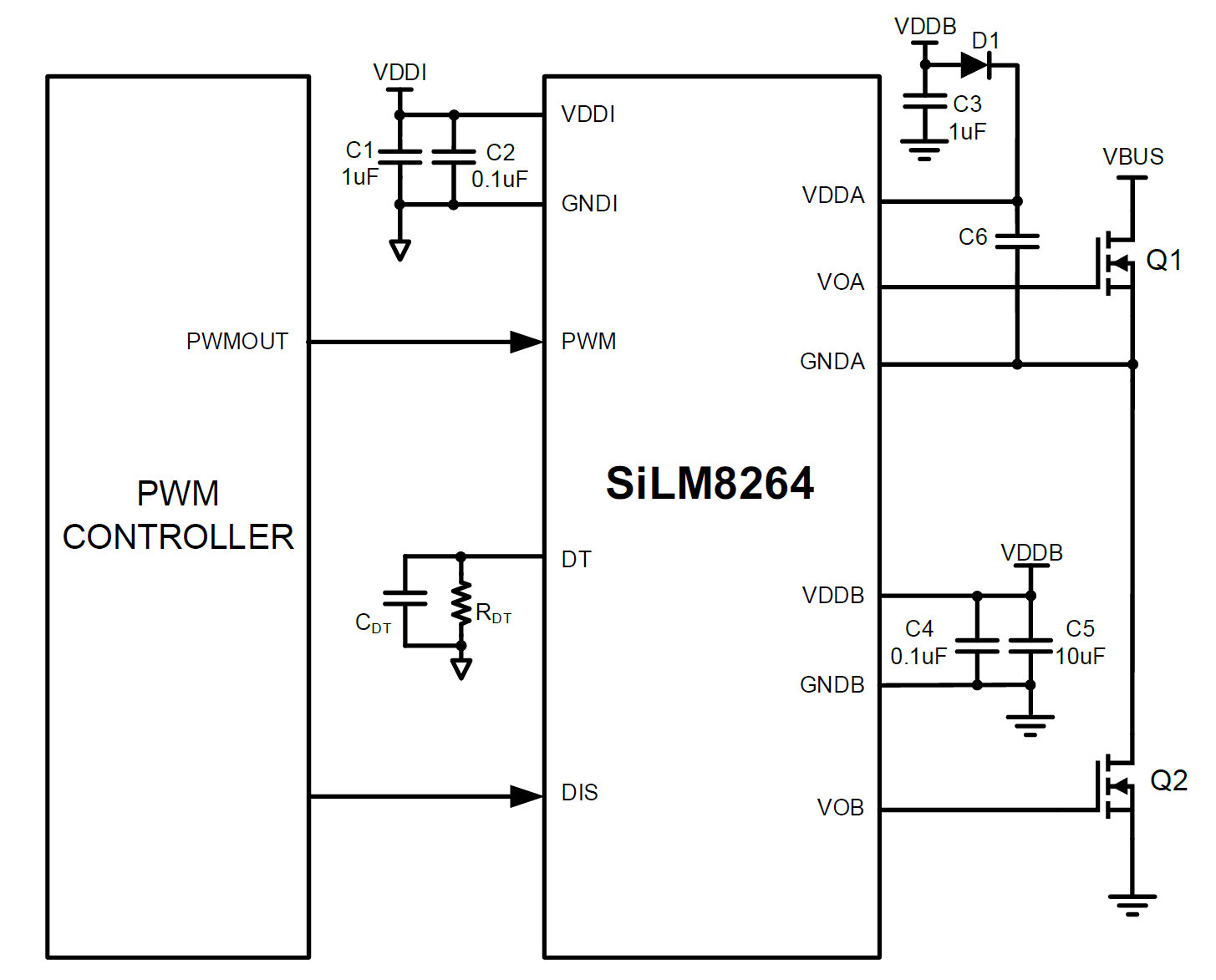

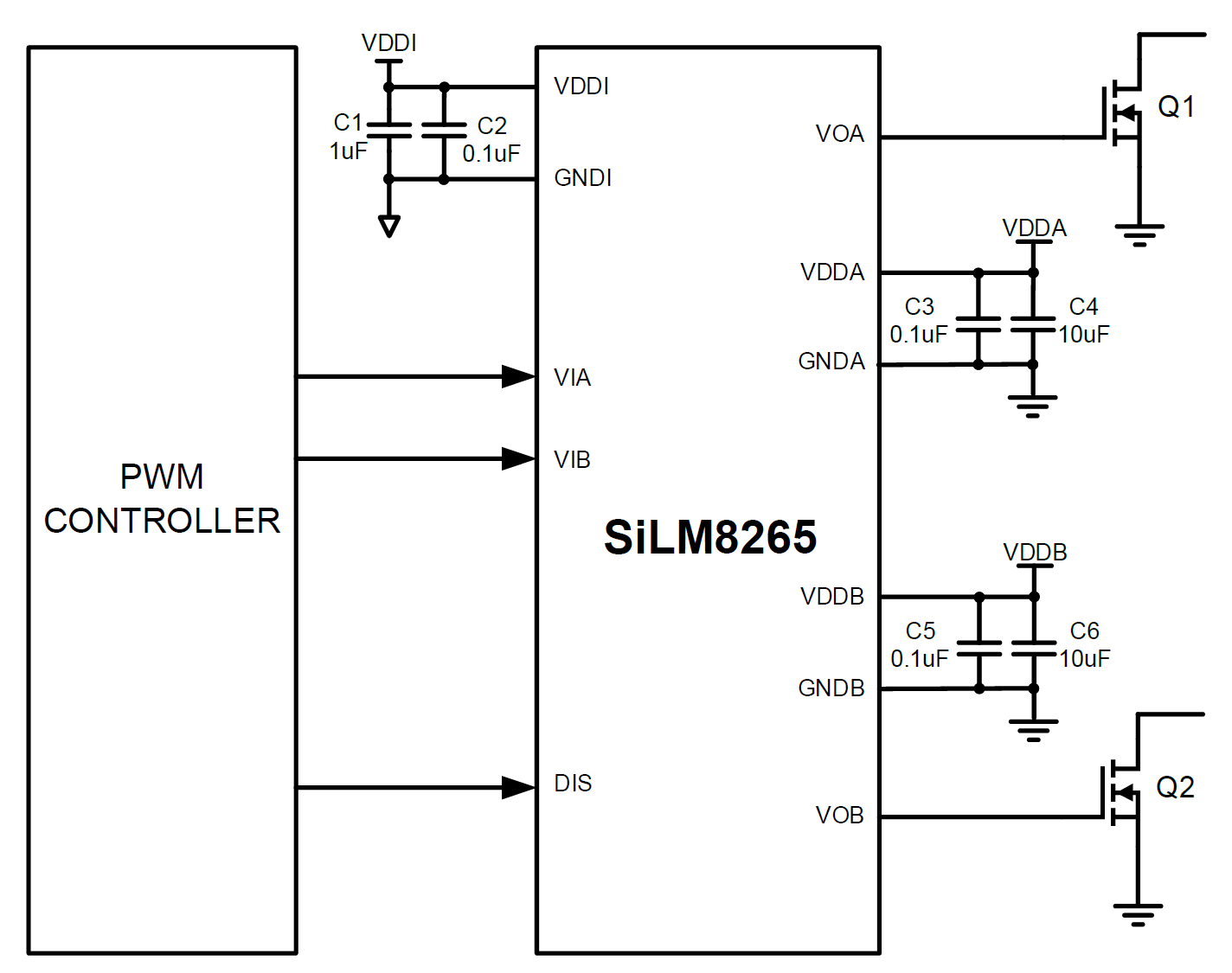

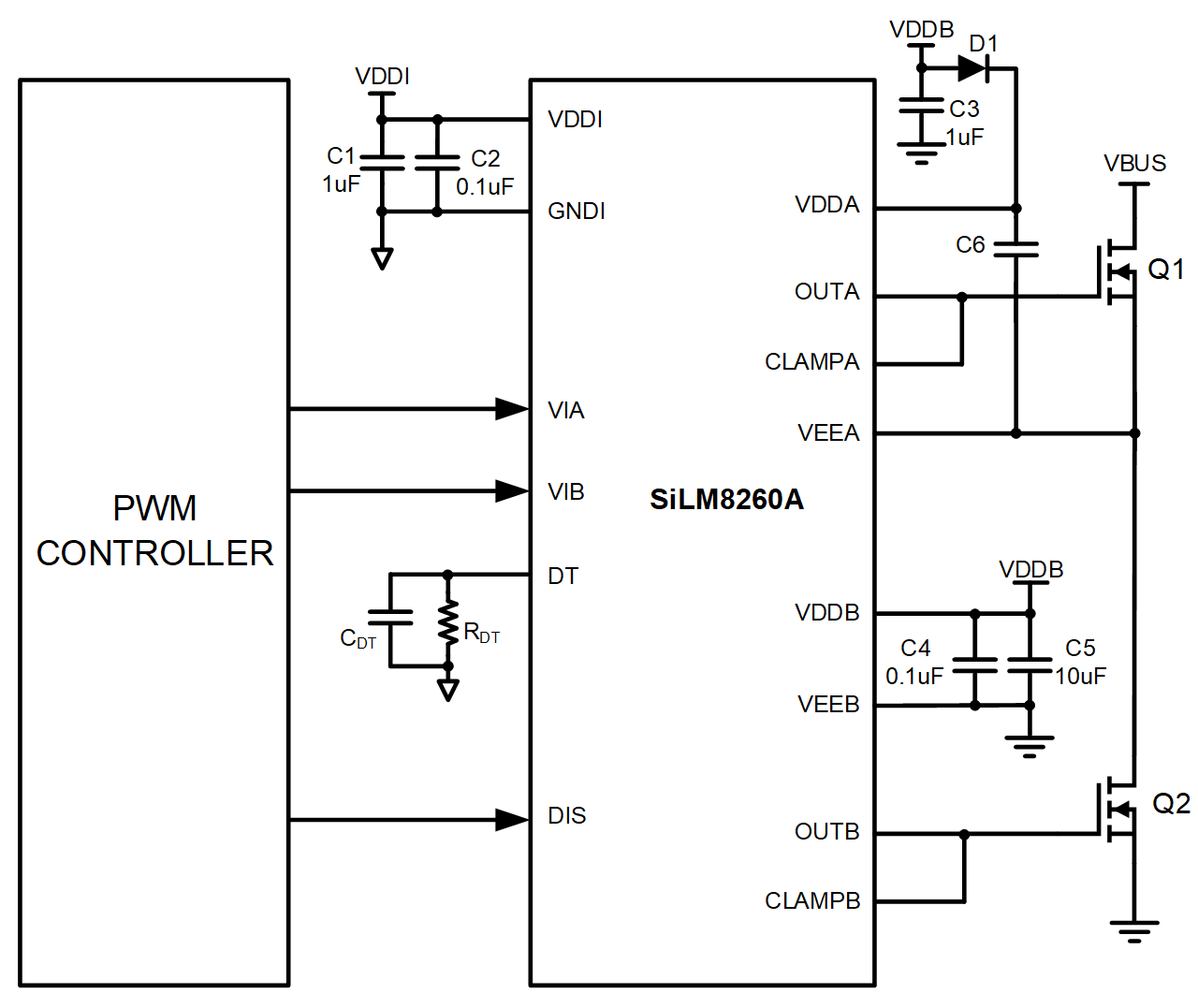

應(yīng)用案例
| Part Number | Power Switch | IOH/IOL (A) | Output VCC/VDD (V) | Input VCC (V) | Prop. Delay（ns） | Input Config | Program Deadtime | Overlap Protection | CMTI (kV/μs) Min. | VISO(Vrms) | Operating Temp （℃） | Package Group | Packing/QTY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SiLM8260ADCS-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.6 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 |
| SiLM8260ABCS-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 |
| SiLM8260AACS-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 |
| SiLM8260AGCS-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 |
| SiLM8260ADCS-AQ | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.6 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 |
| SiLM8260ABCS-AQ | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 |
| SiLM8260AACS-AQ | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 |
| SiLM8260AGCS-AQ | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 |
| SiLM8263GAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8263AAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8263BAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8263DAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.5 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8264GAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3 ~ 18 | 80 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8264AAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3 ~ 18 | 80 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8264BAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3 ~ 18 | 80 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8264DAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.5 ~ 30 | 3 ~ 18 | 80 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8265GAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8265AAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8265BAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
| SiLM8265DAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.5 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 |
