| Part Number | Number of Half Bridge | VS (Min) (V) | VS (Max) (V) | Sleep Current (uA) | Current Sense Amplifier | PWM Input | Control Mode | Control Interface | Operating Temp （℃） | Package | Packing Qty. | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

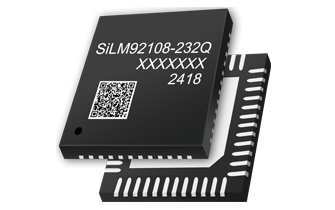

| SiLM92108（帶寬共模電流檢測放大器的8路智能半橋柵極驅動器） | 下載 | |||||||||||
| SiLM92108-232EW-AQ | 8 | 6 | 28 | 3 | 2 | 3 | Independent, PWM | SPI | -40 ~ 125 | QFN7x7-48 WS | Reel/1000 | |
| SiLM9714（帶寬共模電流檢測放大器的4路智能半橋柵極驅動器） | 下載 | |||||||||||
| SiLM9714SET-AQ | 4 | 4.9 | 37 | 2.42 | 2 | 4 | Independent, PH/EN, PWM | SPI | -40 ~ 125 | QFN6x6-40 | Reel/2500 | |
| SiLM9714SEV-AQ | 4 | 4.9 | 37 | 2.42 | 2 | 4 | Independent, PH/EN, PWM | SPI | -40 ~ 125 | QFN8x8-56 | Reel/2000 | |
| SiLM9408/9409（ 獨立半橋控制的 24V，1.2A 雙路 H 橋電機驅動器） | 下載 | |||||||||||
| SiLM9408MC-AH | 4 | 2 | 1.2/1.2 | 4 | 24 | 0.65 | 1 | -40 ~ 125 | SSOP10 | Reel/2500 | ||
| SiLM9409MC-AH | 4 | 2 | 1.2/1.2 | 4 | 24 | 0.65 | 1 | -40 ~ 125 | SSOP10 | Reel/2500 | ||

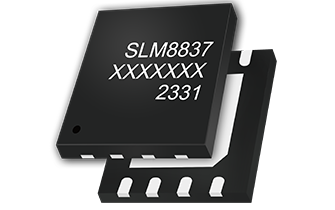

| SLM8837（ 獨立半橋控制的 5V，1.8A H 橋電機驅動器） | 下載 | |||||||||||
| SLM8837EF-7G | 2 | 1 | 1.8/1.8 | 1.8 | 6 | 0.28 | 20 | -40 ~ 125 | DFN2X2-8 | Reel/3000 | ||
