| Part Number | Power Switch | IOH/IOL (A) | Output VCC/VDD (V) | Input VCC (V) | Prop. Delay（ns） | Input Config | Program Deadtime | Overlap Protection | CMTI (kV/μs) Min. | VISO(Vrms) | Operating Temp （℃） | Package Group | Packing/QTY | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SiLM826x系列（雙通道死區可編程的 30V, 10A 隔離驅動） | 下載 | |||||||||||||
| SiLM8260ADCS-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.6 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 | |
| SiLM8260ABCS-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 | |
| SiLM8260AACS-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 | |
| SiLM8260AGCS-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 | |
| SiLM8260ADCS-AQ | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.6 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 | |
| SiLM8260ABCS-AQ | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 | |
| SiLM8260AACS-AQ | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 | |
| SiLM8260AGCS-AQ | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3.5-18 | 80 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP18W | Reel/1500 | |
| SiLM8263GAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8263AAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8263BAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8263DAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.5 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8264GAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3 ~ 18 | 80 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8264AAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3 ~ 18 | 80 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8264BAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3 ~ 18 | 80 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8264DAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.5 ~ 30 | 3 ~ 18 | 80 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8265GAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 4 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8265AAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 6 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8265BAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 9.1 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8265DAHB-DG | IGBT/MOSFET/SiC/GaN | 10.0/10.0 | 13.5 ~ 30 | 3 ~ 18 | 80 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |

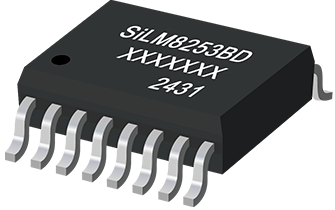

| SiLM825x系列（雙通道死區可編程的 40V, 4A 隔離驅動器） | 下載 | |||||||||||||
| SiLM8253BDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8253DDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8254BDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8254DDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8255BDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8255DDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8253BDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8253DDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8254BDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8254DDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8255BDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8255DDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8253BBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8253DBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8254BBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8254DBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8255BBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8255DBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8253BDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8253DDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8254BDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8254DDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8255BDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8255DDCG-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8253BBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8253DBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8254BBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8254DBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8255BBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 9 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8255DBCL-AQ | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5 ~ 40 | 3 ~ 18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |

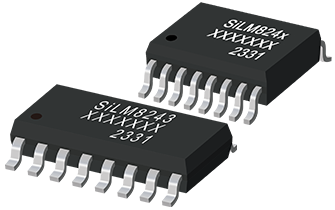

| SiLM824x系列（雙通道死區可編程的 33V, 4A 隔離驅動） | 下載 | |||||||||||||
| SiLM8243BBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8243ABCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8243GBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8243DBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8244BBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8244ABCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8244GBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8244DBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8245BBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8245ABCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8245GBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8245DBCL-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8243ABCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8243GBCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8244ABCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8244GBCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8245ABCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8245GBCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8243ABCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8243GBCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8244ABCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8244GBCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8245ABCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8245GBCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8245DBCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8243BBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8243ABCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8243GBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8243DBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8244BBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8244ABCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8244GBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8244DBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | PWM | Y | Y | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8245BBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8245ABCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8245GBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8245DBCL-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SiLM8243ABCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8243GBCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8244ABCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8244GBCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8245ABCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8245GBCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM8243ABCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8243GBCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8244ABCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8244GBCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | PWM | Y | Y | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8245ABCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8245GBCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 48 | VIA/VIB | - | - | 150 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SiLM8246GAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 45 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8246AAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 45 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8246BAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9.1-33 | 3-18 | 45 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8246DAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 45 | VIA/VIB | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8247GAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 45 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8247AAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 45 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8247BAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9.1-33 | 3-18 | 45 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8247DAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 45 | PWM | Y | Y | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8248GAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 4-33 | 3-18 | 45 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8248AAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 6-33 | 3-18 | 45 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8248BAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 9.1-33 | 3-18 | 45 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |
| SiLM8248DAHB-DG | IGBT/MOSFET/SiC/GaN | 4.0/6.0 | 13.5-33 | 3-18 | 45 | VIA/VIB | - | - | 150 | 2500 | –40 ~ 125 | LGA5X5-13 | Reel/5000 | |

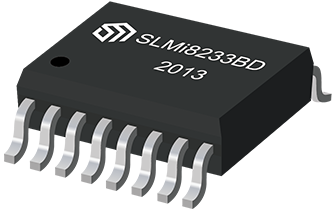

| SLMi823x系列（雙通道死區可編程的 40V, 1A/4A 隔離驅動器） | 下載 | |||||||||||||
| SLMi8230BDCG-DG | IGBT/MOSFET/SiC/GaN | 1.0/1.5 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8230DDCG-DG | IGBT/MOSFET/SiC/GaN | 1.0/1.5 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8231BDCG-DG | IGBT/MOSFET/SiC/GaN | 1.0/1.5 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8231DDCG-DG | IGBT/MOSFET/SiC/GaN | 1.0/1.5 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8232BDCG-DG | IGBT/MOSFET/SiC/GaN | 1.0/1.5 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8232DDCG-DG | IGBT/MOSFET/SiC/GaN | 1.0/1.5 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8233BDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8233DDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8234BDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8234DDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8235BDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8235DDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8233HBDCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8233HDDCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8234HBDCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8234HDDCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8235HBDCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8235HDDCP-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8233HBDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8233HDDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8234HBDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8234HDDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8235HBDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8235HDDCG-DG | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8233BDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8233DDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8234BDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8234DDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8235BDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8235DDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8233HBDCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8233HDDCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8234HBDCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8234HDDCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8235HBDCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8235HDDCP-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8233HBDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8233HDDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8234HBDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8234HDDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8235HBDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8235HDDCG-AQ | IGBT/MOSFET/SiC/GaN | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8253CBDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8253CDDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8254CBDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8254CDDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8255CBDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8255CDDCG-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi8253CBDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8253CDDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8254CBDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8254CDDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8255CBDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8255CDDCP-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 5000 | –40 ~ 125 | SOP14W | Reel/1500 | |
| SLMi8253CBBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SLMi8253CDBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SLMi8254CBBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SLMi8254CDBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | PWM | Y | Y | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SLMi8255CBBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 9-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
| SLMi8255CDBCL-DG | IGBT/MOSFET/SiC | 4.0/7.0 | 13.5-40 | 3-18 | 40 | VIA/VIB | - | - | 100 | 3000 | –40 ~ 125 | SOP16 | Reel/3000 | |
